JS2-HD-GNN(GPS)

Description

Best Mdvr 4 Channel sd card Car mobile dvr with gps tracking system JS2-HD-GNN



Mobile DVR Model:JS2-HD-GNN(GPS)

Product Features:

• 4 channels synchronized A/V recording and playback
• 4 x 720P AHD or 4 x 960H / D1 / HD1 / CIF + 1 x IPC (720P / 1080P)
• Accept 2 SD Cards Storage, up to 128GB each
• Internal G-Sensor, with  GPS
• On board UPS 8 seconds delay power-off for data protection
• 8V-36V wide voltage power supply



Product Specification

Model
JS2-HD-GNN
System
Language	English  / Chinese
Operation Interface	Graphical User Interface（OSD menu）
Password Security	2 Levels: Administrator or User
Video
Video Input	Supports 4 channels CIF/HD1/D1/960H/720P camera Video input
	Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input
	Supports 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input
	Note: 4 channels 720P AHD or 1-CH 720P/1080P IPC + 4-CH 960H Video input will require high speed SD card ( > 80Mb/S, Class 10 or higher)

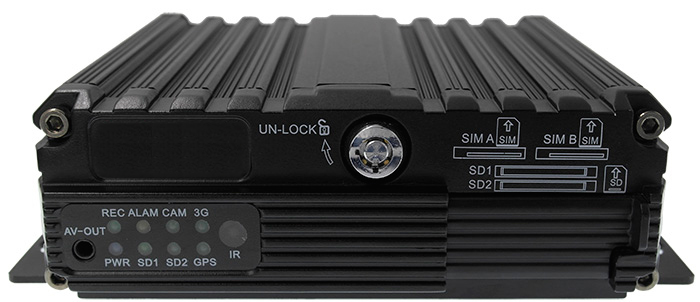

Video Output	2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port )
Video Display	Single picture, 1~5 pictures
Signal System	PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec )
Audio
Audio Input	4 Channels
Audio Output	2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port )
Record Format	Synchronized A/V recording
Recording & Storage
Image Resolution	CIF / HD1 / D1 / 960H / 720P optional
Video Coding	ISO14496-10 Industry Standard
Video Bit Rate	CIF: 1536Kbps ~ 128Kbps,
	HD1/D1: 2048Kbps ~ 400Kbps,
	960H:  2048Kbps ~ 400Kbps,
	720P: 4096Kbps ~ 400Kbps
	Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
Audio Bit Rate	40Kbps
Storage	2 SD Card Slots, Up to 128GB each, Class 10 or higher
Alarm
Alarm Input	8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
Alarm Output	1 Channel, 12V output
Communication Ports
RS485	1 Port for communication or data usage
RS232	2 Port for communication or data usage
RJ45 Network	1 Port of RJ45, For connection to an IP camera with maximum of 1080P
Wireless Communication*
3G*	3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module
4G*	4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier
Wi-Fi*	Internal Wi-Fi ( 2.4 / 5.8 Ghz) optional
GPS*
Int’l Standard GPS	Internal GPS module. Real-time geographic coordinates, speed information
G-Sensor
Internal G-Sensor	Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
Software
PC Playback	A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
IVMS	Wireless  (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.
Software Upgrade
Local or Remotely	Upgrade through SD card or remotely via IVMS platform
Voltage Input
+8V~+36V	8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
Voltage Output
12V	12V (+/-0.2V) , Max 3A
ACC Detection
≤4V	Power-off
≥6V	Power-on
Video Input Resistance
75Ω	75Ω
Video Output Voltage
2Vp-p	2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O Port
<1V	Low voltage trigger
>5V	High voltage trigger
Operational Temperature
-25℃～75℃	Install  in well ventilated area, protected from moisture, heat, dust and vibration
Dimensions
170x142x50mm	Including Security Cover 170x187x50mm

Product Description

Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real time monitoring, applied with Car Cameras used for vehicle monitoring in bus, taxi, school bus, truck, police car, tour bus, tanker truck, escort car etc. Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc. APP <icarview> is available for mobile phones in Android and iOS system.

Order model

• with 3G / 4G, GPS, WiFi modules optional, according to different demands.
• GPS: For map, location and route tracking
• 3G / 4G: For real-time video and monitoring
• Wi-Fi: For automatically downloading video file





Order Model	Description ( Module optional )
JS2-HD-GWW	GPS+3G+WIFI
JS2-HD-GFN	GPS+4G
JS2-HD-GNW	GPS+WIFI
JS2-HD-NNN	Recording Only
JS2-HD-GNN	GPS
JS2-HD-GWN	GPS+3G
JS2-HD-GFW	GPS+4G+WIFI

Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:
