Description

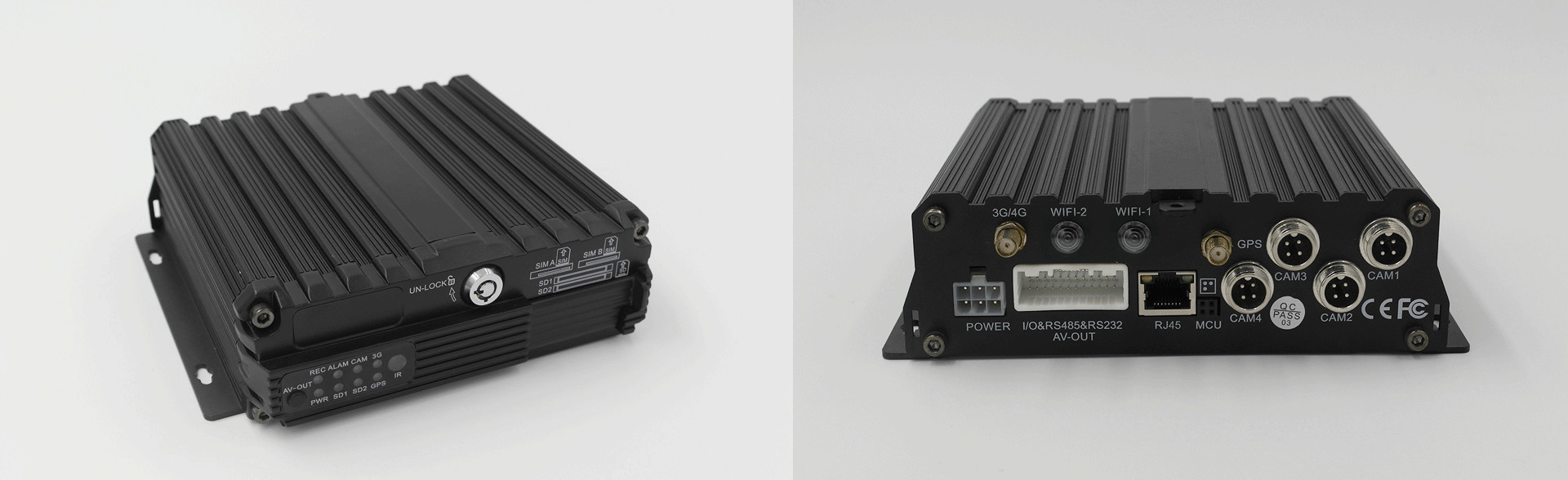

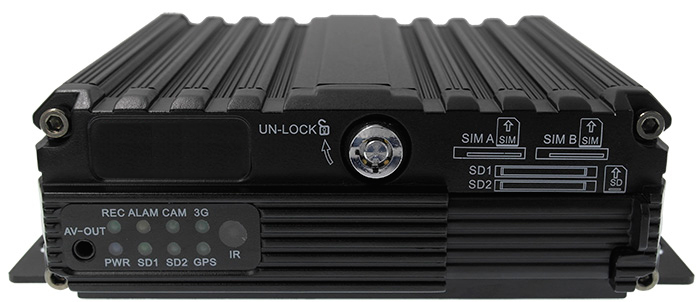

4 channel high quality Mdvr 4G SD Vehicle mobile dvr with gps for Car JS2-HD-GFN
Mobile DVR Model: JS2-HD-GFN (GPS+4G FDD )
Product Features:
- 4 channels synchronized A/V recording and playback
- 4 x 720P AHD or 4 x 960H / D1 / HD1 / CIF + 1 x IPC (720P / 1080P)
- Accept 2 SD Cards Storage, up to 128GB each
- Internal G-Sensor, with GPS and 4G FDD
- On board UPS 8 seconds delay power-off for data protection
- 8V-36V wide voltage power supply
Product Specification
| Model | |
| JS2-HD-GFN | |
| System | |
| Language | English / Chinese |
| Operation Interface | Graphical User Interface（OSD menu） |
| Password Security | 2 Levels: Administrator or User |
| Video | |
| Video Input | Supports 4 channels CIF/HD1/D1/960H/720P camera Video input |
| Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input | |
| Supports 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input | |
| Note: 4 channels 720P AHD or 1-CH 720P/1080P IPC + 4-CH 960H Video input will require high speed SD card ( > 80Mb/S, Class 10 or higher) | |
| Video Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) |
| Video Display | Single picture, 1~5 pictures |
| Signal System | PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec ) |
| Audio | |
| Audio Input | 4 Channels |
| Audio Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) |
| Record Format | Synchronized A/V recording |
| Recording & Storage | |
| Image Resolution | CIF / HD1 / D1 / 960H / 720P optional |
| Video Coding | ISO14496-10 Industry Standard |
| Video Bit Rate | CIF: 1536Kbps ~ 128Kbps, |
| HD1/D1: 2048Kbps ~ 400Kbps, | |
| 960H: 2048Kbps ~ 400Kbps, | |
| 720P: 4096Kbps ~ 400Kbps | |
| Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) | |
| Audio Bit Rate | 40Kbps |
| Storage | 2 SD Card Slots, Up to 128GB each, Class 10 or higher |
| Alarm | |
| Alarm Input | 8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC |
| Alarm Output | 1 Channel, 12V output |
| Communication Ports | |
| RS485 | 1 Port for communication or data usage |
| RS232 | 2 Port for communication or data usage |
| RJ45 Network | 1 Port of RJ45, For connection to an IP camera with maximum of 1080P |
| Wireless Communication* | |
| 3G* | 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module |
| 4G* | 4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier |
| Wi-Fi* | Internal Wi-Fi ( 2.4 / 5.8 Ghz) optional |
| GPS* | |
| Int’l Standard GPS | Internal GPS module. Real-time geographic coordinates, speed information |
| G-Sensor | |
| Internal G-Sensor | Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates |
| Software | |
| PC Playback | A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR |
| IVMS | Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. |
| Software Upgrade | |
| Local or Remotely | Upgrade through SD card or remotely via IVMS platform |
| Voltage Input | |
| +8V~+36V | 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage |
| Voltage Output | |
| 12V | 12V (+/-0.2V) , Max 3A |
| ACC Detection | |
| ≤4V | Power-off |
| ≥6V | Power-on |
| Video Input Resistance | |
| 75Ω | 75Ω |
| Video Output Voltage | |
| 2Vp-p | 2VP-P CVBS output analog signal, screen input requires 75Ω resistance |
| I / O Port | |
| <1V | Low voltage trigger |
| >5V | High voltage trigger |
| Operational Temperature | |
| -25℃～75℃ | Install in well ventilated area, protected from moisture, heat, dust and vibration |
| Dimensions | |
| 170x142x50mm | Including Security Cover 170x187x50mm |
Product Description
Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real time monitoring, applied with Car Cameras used for vehicle monitoring in bus, taxi, school bus, truck, police car, tour bus, tanker truck, escort car etc. Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc. APP <icarview> is available for mobile phones in Android and iOS system.
Order model
- with 3G / 4G, GPS, WiFi modules optional, according to different demands.
- GPS: For map, location and route tracking
- 3G / 4G: For real-time video and monitoring
- Wi-Fi: For automatically downloading video file
| Order Model | Description ( Module optional ) |
| JS2-HD-GWW | GPS+3G+WIFI |
| JS2-HD-GFN | GPS+4G |
| JS2-HD-GNW | GPS+WIFI |
| JS2-HD-NNN | Recording Only |
| JS2-HD-GNN | GPS |
| JS2-HD-GWN | GPS+3G |
| JS2-HD-GFW | GPS+4G+WIFI |
Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:
