Description

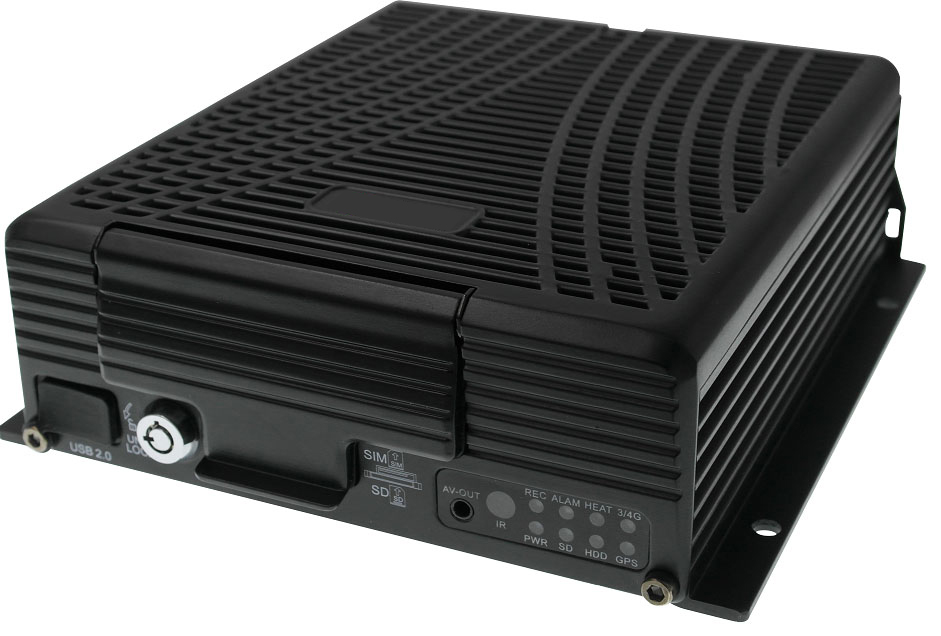

high quality hdd automobile dvr China Mdvr for vehicle tracking management JH8-HD-NNN
Mobile DVR Model: JH8-HD-NNN (N/A) (720P)
Product Features:
- 8 x 720P AHD / 960H / D1 / HD1 / CIF +1x IPC(720P/1080P )Video input, support 960P AHD camera
- VGA Video Output
- accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 128GB) for backup（at 3G/4G/Wi-Fi model option）
- Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard)
- Hard drive automatic heating startup in cold weather
- On board UPS 8 seconds delay power-off for data protection
- Operating temperature -40℃ ~ +80℃
- 8V-36V wide voltage power supply
Product Specification
| Model | |
| JH8-HD-NNN | |
| System | |
| Language | English / Chinese |
| Operation Interface | Graphical User Interface（OSD menu） |
| Password Security | 2 Levels: Administrator or User |
| Video | |
| Video Input | Supports 8 channels CIF/HD1/D1/960H camera Video input |
| Supports 8 channels 720P AHD camera Video input | |
| Supports 4-CH 720P AHD + 4-CH 960H analog mixing Video input | |
| Supports 1-CH 720P/1080P IPC + 8-CH 960H/D1/CIF Video input | |
| Supports 1-CH 720P/1080P IPC + 8-CH 720P AHD Video input | |

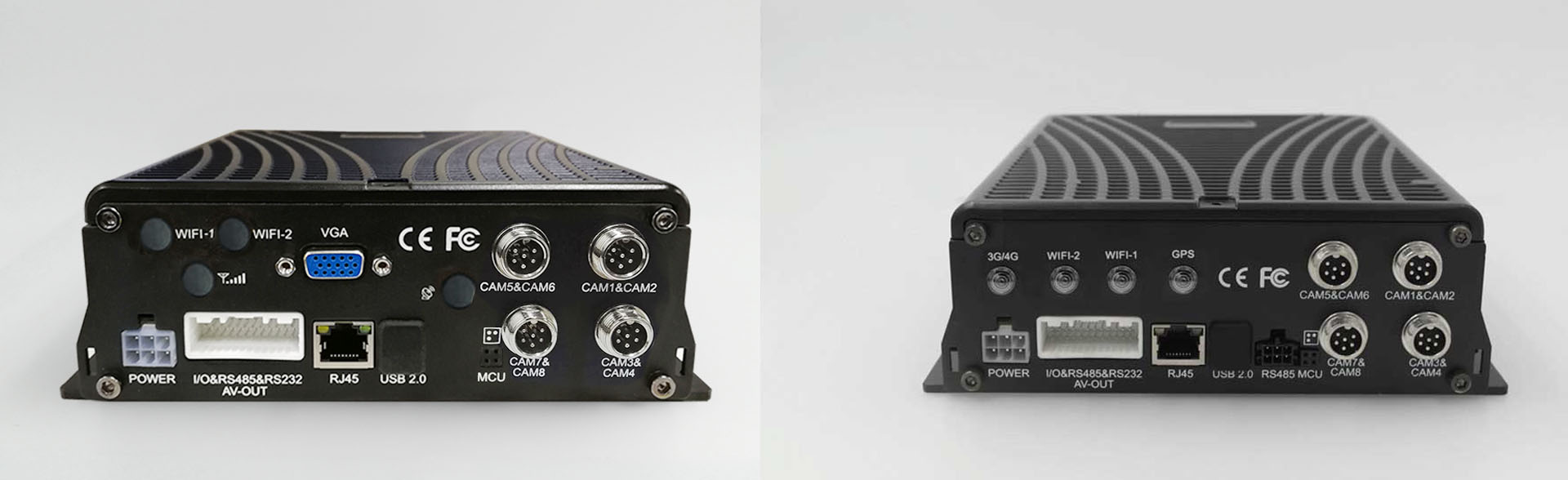

| Video Output | 2 CVBS (Analog); 1 each 3.5mm Jack on Front Panel and one connection on the 24 pin I/O port |
| Video Display | Single picture, 1~8 pictures |
| Signal System | PAL / NTSC ( PAL@200 frame 720P/sec; NTSC@240 frame 720P/sec ) |
| Audio | |
| Audio Input | 8 Channels |
| Audio Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) |
| Record Format | Synchronized A/V recording |
| Recording & Storage | |
| Image Resolution | CIF / HD1 / D1 / 960H / 720P optional |
| Video Coding | ISO14496-10 Industry Standard |
| Video Bit Rate | CIF: 1536Kbps ~ 128Kbps, |
| HD1/D1: 2048Kbps ~ 400Kbps, | |
| 960H: 2048Kbps ~ 400Kbps, | |
| 720P: 4096Kbps ~ 400Kbps | |
| Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) | |
| Audio Bit Rate | 40Kbps |
| Storage | Up to 2TB HDD/SSD and 1 SD card for backup（at 3G/4G/WIFI model option） |
| Alarm | |
| Alarm Input | 8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC |
| Alarm Output | 1 Channel, 12V output |
| Communication Ports | |
| RS485 | 1 Port for PTZ control or Data Device usage |
| RS232 | 2 Port for communication or data usage |
| RJ45 Network | 1 Port of RJ45, For connection to LAN or testing etc |
| USB | 2 Ports for USB 2.0, the front panel one to download video files & upgrade firmware; the rear panel one is optional. |
| Wireless Communication* | |
| 3G* | 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module |
| 4G* | 4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier |
| Wi-Fi* | Internal Wi-Fi ( 2.4 / 5.8 Ghz) optional |
| GPS* | |
| Int’l Standard GPS | Internal GPS module. Real-time geographic coordinates, speed information |
| G-Sensor | |
| Internal G-Sensor | Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates |
| Software | |
| PC Playback | A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR |
| IVMS | Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. |
| Software Upgrade | |
| Local or Remotely | Upgrade through the front USB 2.0 or remotely via IVMS platform |
| Voltage Input | |
| +8V~+36V | 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage |
| Voltage Output | |
| 12V | 12V (+/-0.2V) , Max 3A |
| ACC Detection | |
| ≤4V | Power-off |
| ≥6V | Power-on |
| Video Input Resistance | |
| 75Ω | 75Ω |
| Video Output Voltage | |
| 2Vp-p | 2VP-P CVBS output analog signal, screen input requires 75Ω resistance |
| I / O Port | |
| <1V | Low voltage trigger |
| >5V | High voltage trigger |
| Operational Temperature | |
| -40℃～80℃ | Install in well ventilated area, protected from moisture, heat, dust and vibration |
| Dimensions | |
| 192x184x61mm | Including Security Cover 248x184x61mm |
Product Description
Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real time monitoring, applied with Car Cameras used for vehicle monitoring in bus, taxi, school bus, truck, police car, tour bus, tanker truck, escort car etc. Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc. APP <icarview> is available for mobile phones in Android and iOS system.
Order model
- with 3G / 4G, GPS, WiFi modules optional, according to different demands.
- GPS: For map, location and route tracking
- 3G / 4G: For real-time video and monitoring
- Wi-Fi: For automatically downloading video file
| Order Model | Description ( Module optional ) |
| JH8-HD-GFW | GPS+4G+WIFI |
| JH8-HD-GWW | GPS+3G+WIFI |
| JH8-HD-GFN | GPS+4G |
| JH8-HD-GWN | GPS+3G |
| JH8-HD-GNW | GPS+WIFI |
| JH8-HD-GNN | GPS |
| JH8-HD-NNN | Recording Only |
Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:
