Description

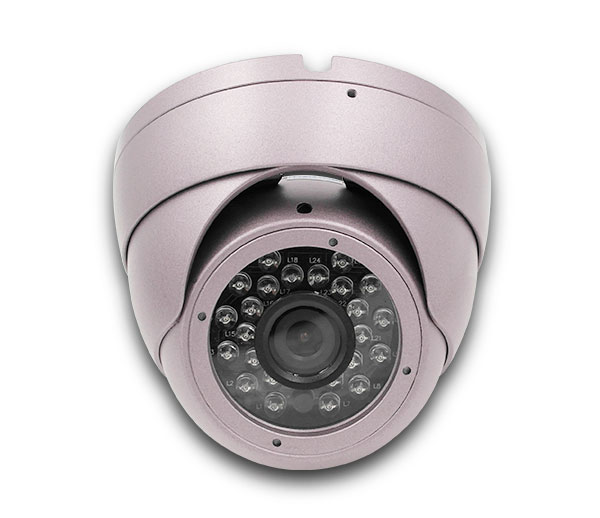

High image quality Metal-cased AHD Car Camera or Mobile DVR JA-MC609
Product Features
- NVP2431H + 1/3” CMOS AR0130 image sensor
- Metal-cased with standard fixed lens;
- Millions of high-resolution(1.3 Mega pixel);
- Audio fuction optional;
- High image quality and high low light performance
- Easy installation to ceiling or wall
- Support 12V DC ±10%,Low power consumption
Product Specification
| Model | JA-MC609 |
| Image Sensor | NVP2431H + 1/3” CMOS AR0130 |
| TV System | PAL/NTSC |
| HD-Resolution | 1.3 Mega pixel |
| Lens optional | f3.6 / 2.8 mm |
| Effective Pixel Arrey | 1280H x 960 V |
| Min illumination | 0.01Lux @(F1.2,AGC ON) |
| S/N Ratio | More than 50 dB(AGC Off) |
| WDR | D-WDR |
| IR | 24PCS IR LED (850nm) |
| Infrared LED Range | 10m |
| Audio fuction | optional |
| horizontal angle of view | 90° (Diagonal) |
| Tilt Adjusting | 0-90 Degree |
| Power Supply | 12V DC ±10%,320mA |
| Dimensions | ø94 x 76 mm |
| Net Weight | 330 g |
| Weatherproof/Water Proof | N/A |
| Operational Temperature | -25 ~ +60 ° C |
| Operational humidity | 20 ~ 80% |
| vedio interface | Aircraft Round Connector Plug |
