Description

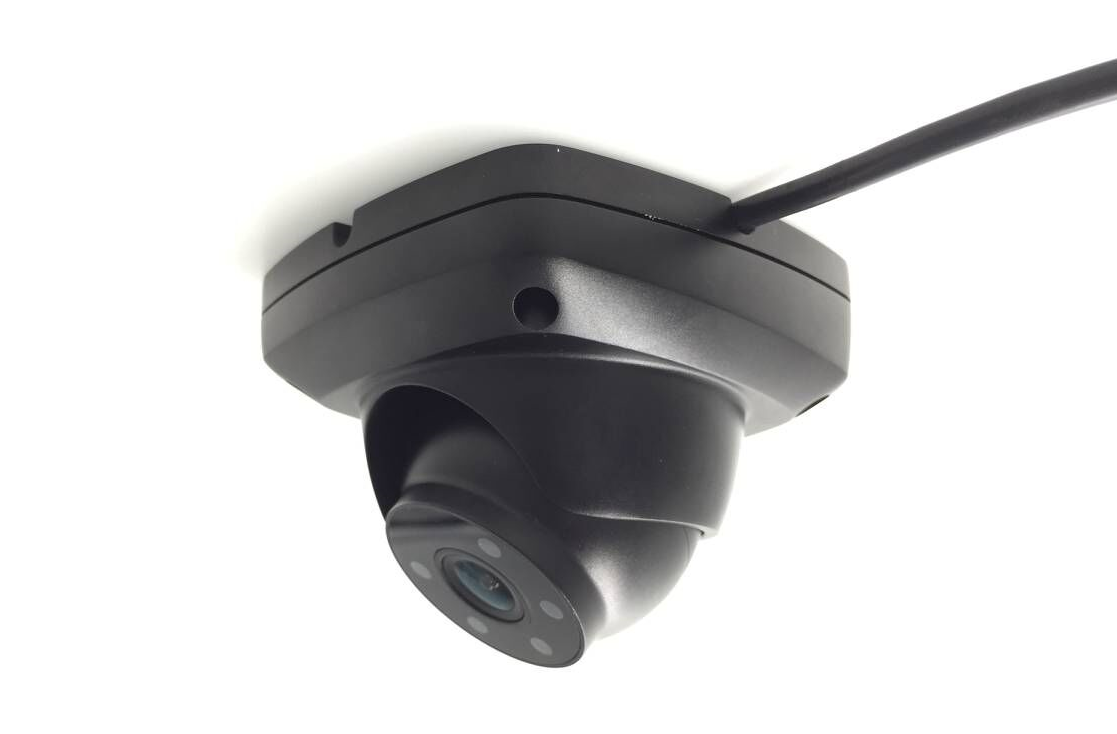

IP67 Waterproof Vehicle AHD Camera for Mobile Dvr Support D-WDR JA-MC912-A
Product Features
- NVP2431H + 1/3” CMOS AR0130 image sensor,
- Support Side installation (2.8mm) ;
- IP67 Waterproof ;
- Support IR function,infrared LED range 20m;
- Easy installation to ceiling or wall;
- Support D-WDR,Video effects can be optimized;
- Support 12V DC ±10%,Low power consumption.
Product Specification
| Model | JA-MC912-A |
| Image Sensor | NVP2431H + 1/3” CMOS AR0130 |
| TV System | PAL/NTSC |
| Lens optional | f2.8 mm |
| Effective Pixel Arrey | 1280H x 960 V |
| Min illumination | 0.01Lux @(F1.2,AGC ON) |
| S/N Ratio | More than 60 dB(AGC Off) |
| WDR | D-WDR |
| IR | 4PCS IR LED |
| Infrared LED Range | 20m |
| Audio fuction | N/A |
| horizontal angle of view | F2.8mm（H90° ） |
| Tilt Adjusting | 0-60 Degree |
| Power Supply | 12V DC ±10%,210mA |
| Dimensions | 108×78×62mm |
| Net Weight | 350 g |
| Weatherproof/Water Proof | IP67 |
| Operational Temperature | -20 ~ +60 ° C |
| Operational humidity | 20 ~ 80% |
| vedio interface | Aircraft Round Connector Plug |
