Description

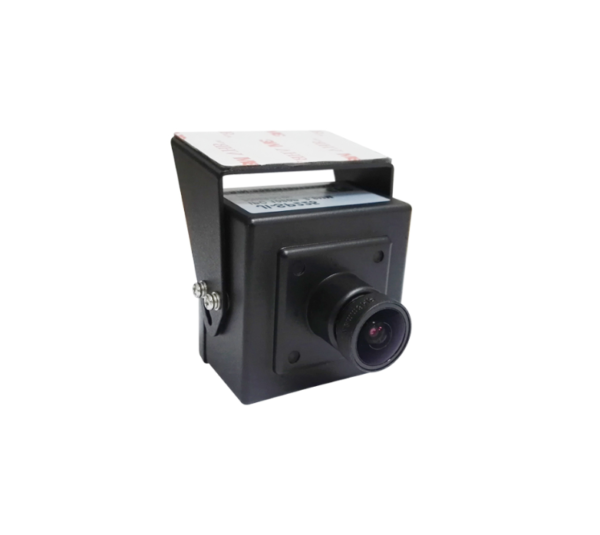

Dust-proof design high-resolution Vehicle AHD Camera JA-MC225
Product Features
- NVP2431H + 1/3” CMOS AR0130 image sensor;
- Dust-proof design
- Millions of Analog high-resolution(1.3 Mega pixel);
- Support D-WDR,Video effects can be optimized;
- F2.8mm wide angle lens,horizontal angle of view 92°;
- Support 12V DC ±5%,working current 65mA±5m
Product Specification
| Model | JA-MC225 |
| Image Sensor | NVP2431H + 1/3” CMOS AR0130 |
| TV System | PAL/NTSC |
| HD-Resolution | 1.3 Mega pixel |
| Lens optional | f2.8 mm |
| Effective Pixel Arrey | 1280H x 960 V |
| Min illumination | 0.01Lux @(F1.2,AGC ON) |
| S/N Ratio | More than 60 dB |
| WDR | D-WDR |
| IR | N/A |
| Infrared LED Range | N/A |
| Audio | N/A |
| horizontal angle of view | 92° |
| Tilt Adjusting | Djustable |
| Power Supply | DC 12V±5%,65mA±5mA |
| Dimensions | 49.5*47.5mm |
| Net Weight | 150 g |
| Weatherproof/Water Proof | N/A |
| Operational Temperature | -20 ~ +60 ° C |
| Operational humidity | ＜90% |
| vedio interface | Aircraft Round Connector Plug |
