Description

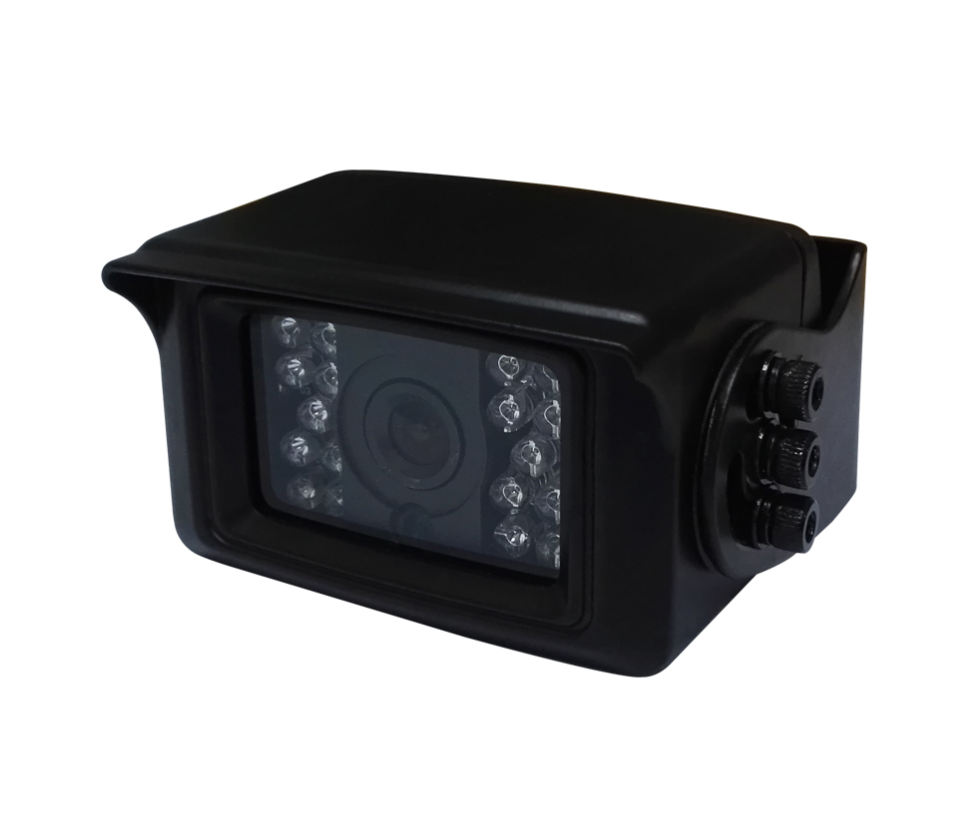

IP67 Waterproof Mini DC 12V AHD Camera Support IR function JA-MC018
Product Features
- NVP2431H + 1/3” CMOS AR0130 image sensor,
- Metal-cased mini housing with standard fixed lens;
- IP67 Waterproof & Vandalproof;3.6mm / 2.8mm lens optional ;
- Support IR function,infrared LED range 10m;
- Easy installation to ceiling or wall;
- Support 12V DC ±10%,Low power consumption.
Product Specification
| Model | JA-MC018 |
| Image Sensor | NVP2431H + 1/3” CMOS AR0130 |
| TV System | PAL/NTSC |
| Work current | 210mA |
| Lens optional | f3.6 / 2.8 mm |
| Effective Pixel Arrey | 1280H x 960 V |
| Min illumination | 0.01Lux @(F1.2,AGC ON) |
| S/N Ratio | More than 50 dB(AGC Off) |
| WDR | D-WDR |
| IR | 18PCS IR LED (850nm) |
| Infrared LED Range | 10m |
| Audio fuction | N/A |
| horizontal angle of view | 90° (D) for F3.6mm |
| Tilt Adjusting | 0-60 Degree |
| Power Supply | 12V DC ±10% |
| Dimensions | 79×65×38mm |
| Net Weight | 320 g |
| Weatherproof/Water Proof | IP67 |
| Operational Temperature | -20 ~ +60 ° C |
| Operational humidity | 20 ~ 80% |
| vedio interface | Aircraft Round Connector Plug |
