Description

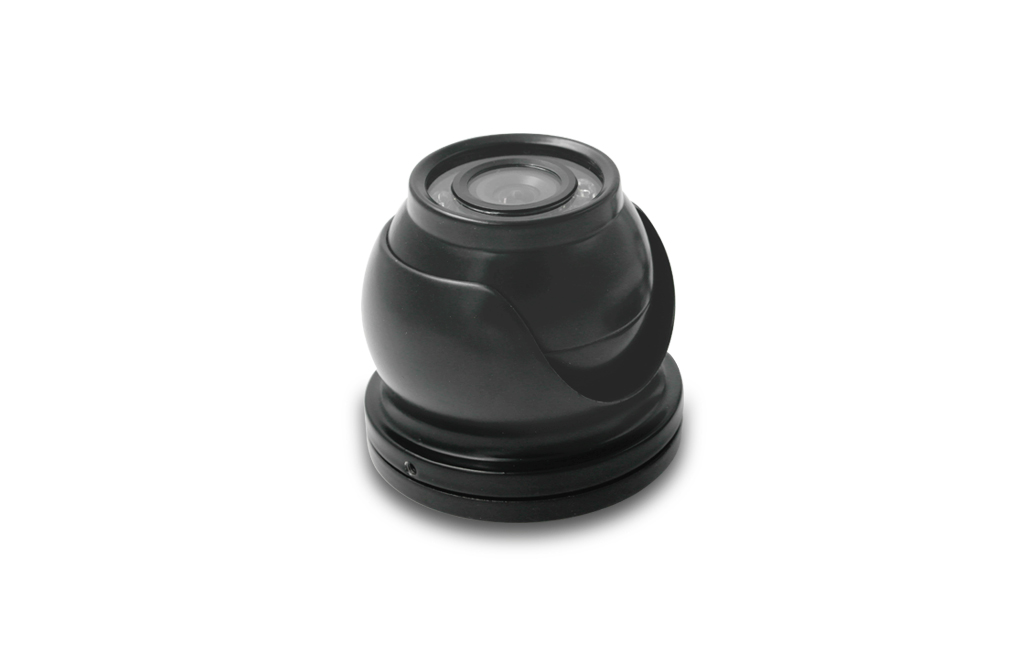

Metal-cased Mini Car DC 12V AHD Vehicle Camera JA-612B
Product Features
- NVP2431H + 1/3” CMOS AR0130 image sensor;
- Millions of high-resolution(1.3 Mega pixel);
- Metal-cased mini housing with standard fixed lens;
- 3.6 / 2.8 mm lens optional,and option 12 LEDs;
- Easy installation to ceiling or wall;
- Support 12V DC ±10%,Low power consumption.
Product Specification
| Model | JA-612B |
| Image Sensor | NVP2431H + 1/3” CMOS AR0130 |
| TV System | PAL/NTSC |
| HD-Resolution | 1.3 Mega pixel |
| Lens optional | f3.6 / 2.8 mm |
| Effective Pixel Arrey | 1280H x 960 V |
| Min illumination | 0.01Lux @(F1.2,AGC ON) |
| S/N Ratio | More than 50 dB(AGC Off) |
| WDR | N/A |
| IR function | 12PCS IR LED（850nm）optional |
| Audio fuction | N/A |
| horizontal angle of view | 90° (D) for F3.6mm |
| Tilt Adjusting | 0-90 Degree |
| Power Supply | 12V DC ±10%,60mA |
| Dimensions | ø59 x 52 mm |
| Net Weight | 130 g |
| Weatherproof/Water Proof | N/A |
| Operational Temperature | -20 ~ +60 ° C |
| Operational humidity | ＜95% |
| vedio interface | Aircraft Round Connector Plug |
