97% ACCURACY COUNTER CAMERAS



Specifications:



1.   3D binocular passenger flow counter introduction:

The people counter system is the latest technology on video analysis and application, which is also the most advanced solution for counting the numbers of passengers on public transport.



Binocular cameras is the most accurate video people counter cameras adopted with stereoscopic recognization technology. It can provide high accuracy when determining traffic volumes from our small compacted video people counter.

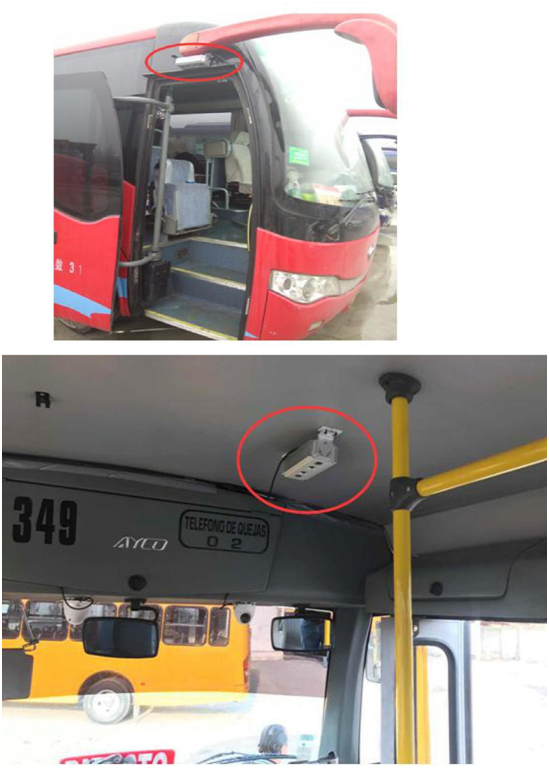

The binocular cameras should be located overhead in the bus, which must tilt to the bus door or the first stair of bus door. Real time bi-directional counting records will be shown in LCD monitor and saved in the flash of video passenger counter. In fact,our video people counter also enables download data by ethernet cables via router or other WIFI modem.

2.  Compared with the counter in the market, our advantages are:



1. 3D images are created by two CCD sensors built-in the one binocular

The video people counter calculates object height, enabling distinctions between types of foot traffic such as children, adults or other invalid objects.

2.

The device is also appropriate in a broad set of environments. This includes high traffic sites with variable lighting and indoor environments.

3.

Stereo cameras allow to export normal video to LCD monitor or Mobile DVR; Vandal-proof design to prevent possible damage.



4. It can work separately and if your vehicle already installed a mdvr and we can just use it’s own platform and if you want it to work with together with your mdvr, we can just do some integration and then you can get data from the mdvr platform. Unlike other devices, the counter cannot operate statistics itself and normally they will use a mdvr for operate the counter and another mdvr for monitor the vehicle.

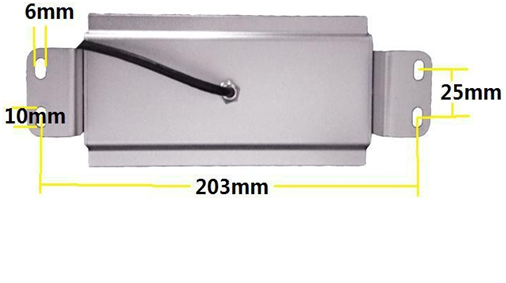

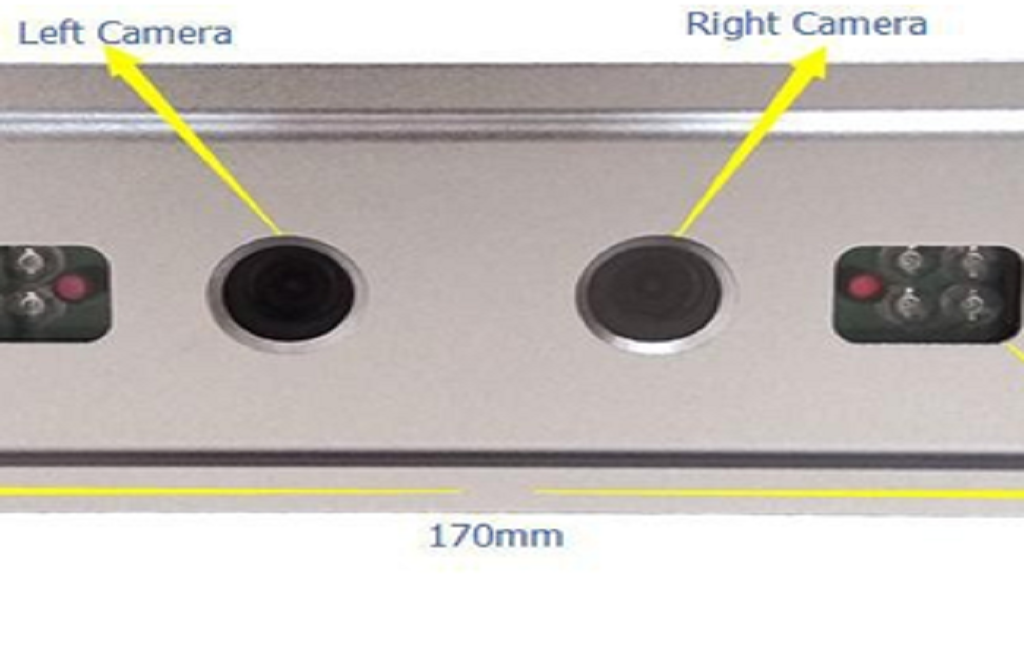

3.    Product diagram





4. Technical parameters



3D passenger flow counter Parameters
	Description	Remarks
Model	Binocular 3D passenger flow
Installation form	Item down
Accuracy	≥95%
External interface	RS485 interface RJ45 interface 12V 2A power	Serial communication Telecommunication
Supporting agreement	Support TCP, UDP and other protocols
Control	Can be configured through the client, control
With infrared	Can work in a black environment
Operating temperature	-20℃-85℃
Waterproof	IP66
Power consumption	Around 8W
Weight	Around 0.6kg
Size	170mm*85mm*70mm	Long * wide * high
System start-up time	About 35 seconds
Detection of door width	1.5 meter	Different scenes with different long* wide * high

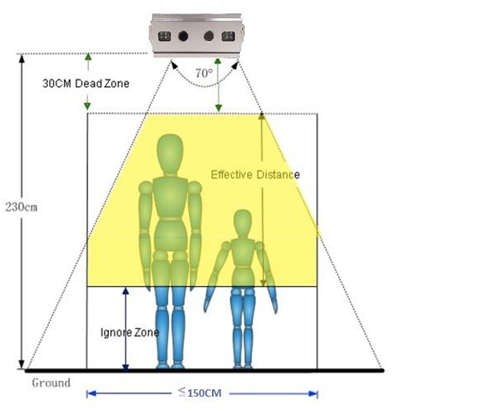

5. Installation notes:

Camera has to install above 2.2m and below 2.8m,It’s best position at 2.3m.

Please make sure two lens with the ground vertical, equipment as far as possible in a better place to ventilation. Once connect with mobile DVR, it will show get on people number and get off people number.

6.  The product interface, Power supply DC adapter, RS485, easy to install
